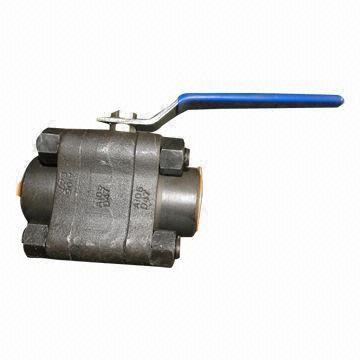

Cast Steel Ball Valve, API6D, ANSI B16.34 Standards

Cast Steel Ball Valve, API6D, ANSI B16.34 Standards
Short Description
 Model No.: LD-027S-BV-04    Clicks: 1315
Cast Steel Ball Valve manufacturer orient steel supplies API6D Cast Steel ball Valves, ANSI B16.34 Cast Steel Ball Valves, Class 150 - 1,500lbs, 2 - 24 inches.
Keywords: Ball Valves , Carbon Steel Valves , Cast Steel Valves , Cast Valves .
Previous: Pneumatic Actuated Ball Valves
Next: 3 Pieces Trunnion Mounted Ball Valve, API 6D, Fire Safe

Cast Steel Ball Valve, API6D, ANSI B16.34 Standards Key Specifications / Features

Materials: WCB, LCB, LCC, CF8, CF8M, CF3 and CF3M
Class: 150 to 1,500lbs
Size: 2 to 24 inches
Valve Design Standards: API6D, ANSI B16.34
Face to face: ANSI B16.10
End flange: ANSI B16.5
BW end: ANSI B16.25
Test: API598
ball Valve Operators: handwheel, gear and electric actuator
