2000 WOG Ball Valves

Short Description

Model No.: LD-025S-BL Clicks: 4385

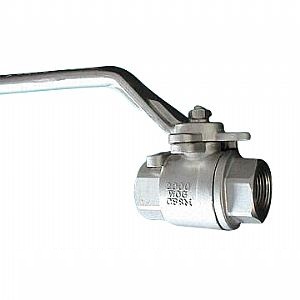

2000 WOG Ball Valve Manufacturer orient steel supplies 2 pieces 2000 PSI WOG Ball Valves with Locking Device, with Butt-Welded, Socket-Welded, threaded Connetion.

Keywords: Ball Valves .

Previous: Three-Piece Ball Valves
Next: Ball Valves 2000 WOG A216 WCB

2000 WOG Ball Valves Key Specifications / Features

Valve Types: ball valve 2000 wog with locking device (2-PC)
Ball Valve Size range: from 1/4 inch to 2 inch full bore
Working pressure: 2000 PSI for W.O.G.
Connection: Butt-Welded (BW); Socket-Welded (SW); threaded: BSPT, BSP, NPT, DIN2999
Valve Body material: stainless steel 304, 304L, 316, 316L
Valve Manufacturing standards: ANSI, DIN, BS
Applicable temperature: from -60 degrees C to 450 degrees C
