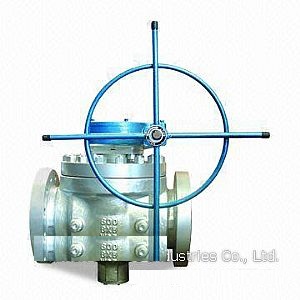

Top Entry Ball Valves

Short Description

Model No.: LD 004L2-BVTE1 Clicks: 2811

Top Entry Ball Valve Manufacturer Orientsteel supplies API 6FA Stainless Steel Top Entry Ball Valves, Passed Firesafe Test, with Flanged, Butt-welded Connections.

Keywords: Ball Valves .

Previous: Trunnion Ball Valves
Next: Stainless Steel Ball Valves

Top Entry Ball Valves Key Specifications / Features

Top entry ball valves with firesafe test to API 6FA passed
Valve Body materials: A105, LF2, F11, F22, F304, F304L, F316 and F316L
Manufacturing standards: API6D, API608 and BS5351
Pressure: ANSI class 150 to 2500 (PN1.6 to 42MPa)
Applicable temperature: -196 to 650 degrees Celsius
Valve Connection: flanged and butt-welded
Ball Valve Size range: 2 to 48 inches (15 to DN1,200mm)
